Bell Boxes and Sirens

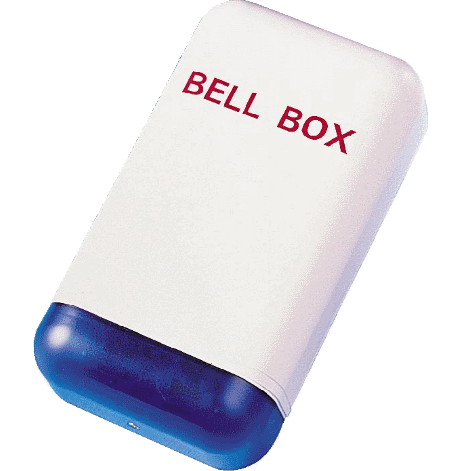

TK-820
TK-820

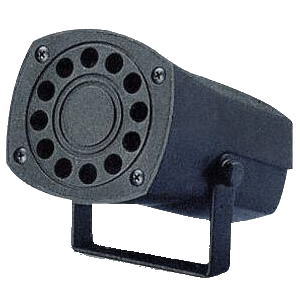

TK-403
TK-403
PH-820
PH-820
TK-438
TK-438

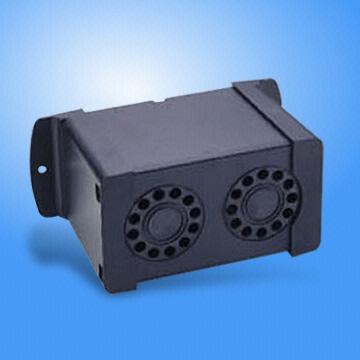

TK-428
TK-428

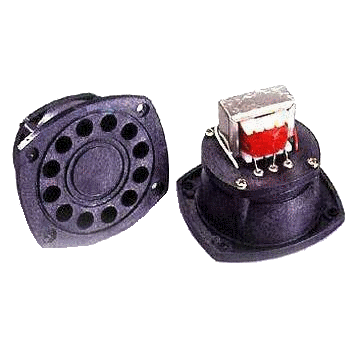

PZ-403/PZ-403T
PZ-403/PZ-403T

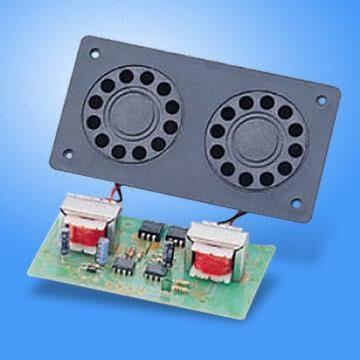

PS-428
PS-428

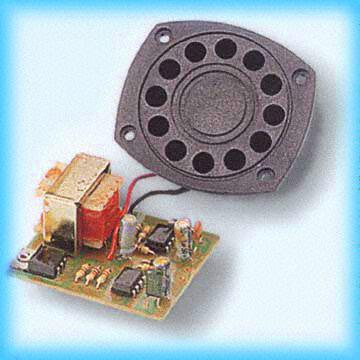

PS-403
PS-403

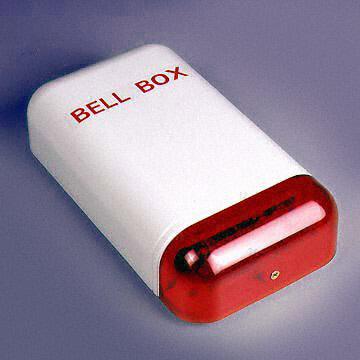

TK-800
TK-800
Alarm Systems
Alarm accessories
TK-732 Stand Alone Access Control System
TK-732 is fully programmable stand-alone access control system that allows entry using proximity technology, keypad or both (proximity card with 8 digit number + PIN), for up to 5,000 users.

Characteristics
Proximity type reader,read range up to 7cm
Memory capacity store up to 5000 user records
Large LCD display, 16 character x 2 lines with back light
Access mode selectable
1.reading proximity card
2.card data + personal password
3.key-in card data
Anti-duress function available
Arm or disarm connected security system
Patrol function available
Security function available
User cards can be registered / deleted in batch mode
Authorize card to be removed once incorrect password keyed-in five times consecutively
Alarm to be activated once incorrect password keyed-in five times within four minutes
Activate alarm status by force entry, tamper switch, anti-duress, security function or opening of off-limit door
Last ten history records available
Audible key tone for easy operation
Strike, alarm and duress relay drive time selectable (1 - 255 seconds)
Door left open time selectable (1 - 255 seconds)
Two-piece enclosure design the reader is patted for weather and hazard proofing
Separate relay module design, high security provided
Power saver function: back light of LCD turns off when no operation within three minutes
TK-732
Surveillance / CCTV
CCD Camera
Key Specifications/Special Features:

    * Auto white balance
    * Dual-lens design
    * Waterproof: IP68
    * Auto backlight compensation
    * 42pcs dual-angle high-quality LED provide IR distance of 30 to 35m
    * Light sensor driver RoHS
    * Dimensions: Ø80 × 132mm
    * Weight: 235g
    * Image sensor: 1/3-inch Sony CCD
    * Resolution: 420TVL
    * Lens type: 4/6/8mm
TA-642CM
Key Specifications/Special Features:

    * Digital signal processor
    * Auto trace white balance
    * Automatic gain control
    * Auto backlight compensation
    * Dimensions: Ø98 × 66mm
    * Weight: 120g
    * Image sensor: 1/3-inch Sony CCD
    * Resolution: 420TVL
    * Lens type: 3.6mm

Delivery Details:
FOB Port:

    * Taiwan
TA-600CM
Digital signal processor
Auto white balance
Automatic gain control
Auto backlight compensation
Water proof, antivandal dome camera: IP64
Built in 4mm~9mm Auto diaphragm lens selectable
LED built in
Dimensions: Ø139×H:95mm
Weight: 700g
Image sensor: 1/3-inch Sony Super HAD CCD
Resolution: 520TVL
TA-680CM
Digital signal processor
Auto trace white balance
Automatic gain control
Auto backlight compensation
IR range: 15~20 meters
Dimensions: Ø110 × H:140mm
Weight: 250g
Image sensor: 1/3-inch Sony CCD
Resolution: 420TVL
Lens type: 4mm
TA-630CM
FEATURES
Color camera with SONY 1/3" Super HAD CCD sensor in metal case.
Employs Digital Signal Processor (DSP) chip-set for image control.

Pixel number:  	NTSC=270K / PAL=320K (Normal Resolution).
	NTSC=380K / PAL= 440K (High Resolution).
	Controlled by OSD Menu.
	Additional Functions, motion detection, mirror, sharpness.
	Day-time or night-time conditions function that is selects the mode.
	High sensitivity, CCD enables a clear image even in 0.3Lux (0.1Lux B/W) or lower illumination.
	DC drive lens. Supports both C & CS mount lens.
	The PRIVACY function enables you to select and record.
	Special Application: License plate recognition by 8-Level shutter speed setting.
TA-639CM
FEATURES
IR Dome color camera with SONY 1/3" Super HAD CCD sensor.
Employs Digital Signal Processor (DSP) chip-set for image control.

Pixel number:  	NTSC=270K / PAL=320K (Normal Resolution).
  	NTSC=380K / PAL=440K (High Resolution).
	High sensitivity, low smear, high anti-blooming and high S/N ratio.

Build-in functions: 	Auto Electronic Shutter (AES), Auto Gain Control (AGC),Auto White Balance (AWB).
	Built-in anti-aliasing and IR-pass (850nm) optical filter.
	Built-in IR-LED X 21,CCD color image automatically changed into B/W image in low light environments.
TA-649CM
FEATURES
	Color dome camera with SONY 1/3" CCD sensor.
	Employs Digital Signal Processor (DSP) chip-set for image control.
	Pixel number: NTSC=380K / PAL=440K (High Resolution).
	High sensitivity, low smear, high anti-blooming and high S/N ratio.
	Built-in functions: Auto Electronic Shutter (AES), Auto Gain Control (AGC), Auto White Balance (AWB).
	Built-in Vari-Focal DC-Drive auto iris lens.
	OLPF auto switching (IR-Cut Removable).
	Built-in 11 units of high efficiency IR LED.
	CCD color image automatically changed into B/W image in low light environments.
	Furnished with DC power cable and video cable.
	Max. 10 pounds sledgehammer impact durability.
	Water resistant IP66 protection.
TA-681CM
Key Specifications/Special Features:
Automatic gain control
Automatic trace white balance
Automatic electronic shutter, 1/60(1/50) ~ 1/100,000 sec
Chip Brand       : SHARP
Weight           : 130g
Outline Dimension: Φ96(D) x 62(H) mm
Resolution       : 380 TV Lines (Horizontal)
Lens type        : 3.6mm / F2.0
TA-601
Automatic gain control
    Automatic trace white balance
    Automatic electronic shutter, 1/60(1/50) ~ 1/100,000 sec
    Chip Brand : SHARP
    Weight : 350g
    Outline Dimension: Φ96(D) x 62(H) mm
    Resolution : 480 TV Lines (Horizontal)
    Lens type : 3.6mm / F2.0
    Minimum Illumination : 0.1 Lux / 0 Lux with IR LED ON
    IR LED Spec
    (1). Effective distance : 15m (24pcs)
    (2). Peak emission wavelength (λp) = 850nm
    (3). Life = 8000hrs, Relative brightness = 85%
TA-643
DVR
Key Specifications/Special Features:

    * Video display image Full HD output up to 1080P pixel
    * Pentaplex Operation: live, recording, playback, backup & remote access
    * Trur color GUI (graphic User Interface)
    * Free DDNS server for use with Dynamic IP address
    * HDMI output built-in
    * Multiple backup for Thumb Drive/ USB / CDRW, DVDRW/USB HDD and network download
    * Free Central Management Software (CMS) allow viewing of 512 channels
    * Multiple language OSD
    * AVI backup
    * Remote view support iPhone, Blackberry, Windows/Android base mobile phone
TA-724DR
Key Specifications/Special Features:
    * Video display image Full HD output up to 1080P pixel
    * Pentaplex Operation:  live, recording, playback, backup & remote access
    * Ture color GUI (graphic User Interface)
    * Free DDNS server for use with Dynamic IP address
    * HDMI output built-in
    * Multiple backup for Thumb Drive/ USB / CDRW, DVDRW/USB HDD and  networkdownload
    * Free Centrol Management Software (CMS) allow viewing of 512 channels
    * Multiple language OSD
    * AVI backup
    * Remote view support iPhone, Blackberry, Windows/Android base mobile phone
TA-728DR
Key Specifications/Special Features:

    * True H.264 compression and up to D1(max.720x480/720x576) resolution
    * Motion Detection area is able to be configured unlimitedly
    * Single and multi channels are selectable for video backup
    * Free Central Management Software(CMS) allows viewing of 40 channels on a PC
    * Multiple languages OSD(English,Chinese,others)
    * Per channel configuration
    * IE remote viewing supports iPhone,Blackberry mobile phone
    * Built-in RS-485,support PTZ control
TA-704DR
Key Specifications/Special Features:

* True H.264 compression and up to D1(max.720x480/720x576) resolution
* Motion Detection area is able to be configured unlimitedly
* Single and multi channels are selectable for video backup
* Free Central Management Software(CMS) allows viewing of 40 channels on a PC
* Multiple languages OSD(English,Chinese,others)
* Per channel configuration
* IE remote viewing supports iPhone,Blackberry mobile phone
* Built-in RS-485,support PTZ control
TA-708DR
Features
•	H.264 compression which allows recording of the video at high quality while taking up less storage space
•	2 USB allows operation of the DVR by mouse or touch panel screen
•	4CH Real-Time display at 120fps/NTSC or 100fps/PAL
•	Triple Stream, recording at D1 and viewing at CIF remotely
•	Watermark & Scrambling examination to verify recorded files
•	CMS (Central Management System) supports unlimited DVR/cameras with PTZ controls
•	DIDO/PTZ/RS-485 supported
•	Intelligent 3G/GPRS Mobile Surveillance; Symbian, Windows Mobile, JAVA, iPhone, Blackberry, and Android supported
•	GUI with 32 bit True Color
•	Firmware upgrade by USB or network
•	SATA devices supported
•	Smaller size allows user to work efficiently and save space
TA-714DR
Features
1.Modified H.264 technology is providing highly compressed save file and maximized recording time.
2.GUI interface supported. It can be controlled from front panel / mouse /remote controller.
3.Multi motion detection areas
4.Video backup without stop recording.
5.Max. 120 fps real-time recording frame.
6.Pentaplex function support: Live / Record / Playback / Network / Mobile Phone.
7.Support 4 audio inputs and 4 video inputs synchronously.
8.Remote backup and playback via IE browser.
9.Support Host USB backup
10.Video player can be saved in the same time with footage backup which is able to playback
     on PC directly after backup.
11.Recording resolution up to 720x480 D1 resolutions.
12.Variety setting on recording fps, resolution, contrast, and brightness for each channel depending
      on user.
13.Friendly recording schedule depends on user setup.
14.Adjustable VGA resolution output setting.
15.One channel or multi-channel video backup capability.
16.Max. 16 channels connection via IE browser
17.Backup time frame can be setup for each backup file depending on user's requirement.
18.Email sending when alarm is triggered.
TA-734DR
FEATURES
Real time recording (30fps for each channel).
Supports 3G mobile phone, Symbian, Windows Mobile, iPhone, Blackberry, Android.
Individual set up for each channel (fps, quality and resolution).
Dual streaming enables faster internet transmission.
Backup by network, USB flash drive, USB DVD-RW.
Supports VGA (1280 *1024) output.
2 video outputs for main monitor (VGA and BNC) and 1 video output for SPOT monitor (BNC).
2 USB ports and 1 SATA devices supported.
1 audio inputs and 1 audio outputs.
AVI converter with time stamp.
Advanced CMS software with People Counting Application and Security Fence Alert.
The CMS can control up to 64 cameras on a single screen and 16 PTZ cameras.
Supports E-Map function for DVR group management.
TA-754DR
FEATURES
Real time recording (30fps for each channel).
Supports 3G mobile phone, Symbian, Windows Mobile, iPhone, Blackberry, Android.
Individual set up for each channel (fps, quality and resolution).
Dual streaming enables faster internet transmission.
Backup by network, USB flash drive, USB DVD-RW and SATA DVD-RW.
Supports VGA (1280 *1024) output.
2 video outputs for main monitor (VGA and BNC) and 1 video output for SPOT monitor (BNC).
2 USB ports and 2 SATA devices supported.
4 audio inputs and 2 audio outputs.
8 sensor in (NO / NC) and 1 relay out.
AVI converter with time stamp.
Advanced CMS software with People Counting Application and Security Fence Alert.
The CMS can control up to 64 cameras on a single screen and 16 PTZ cameras.
Supports E-Map function for DVR group management.
TA-758DR
FEATURES
	Real time recording (30fps for each channel).
	Supports 3G mobile phone, Symbian, Windows Mobile, iPhone, Blackberry, Android.
	Individual set up for each channel (fps, quality and resolution).
	Dual streaming enables faster internet transmission.
	Backup by network, USB flash drive, USB DVD-RW and SATA DVD-RW.
	Supports VGA (1280 *1024) output.
	2 video outputs for main monitor (VGA and BNC) and 1 video output for SPOT monitor (BNC).
	2 USB ports and 4 SATA devices supported.
	16 audio inputs and 2 audio outputs.
	16 sensor in (NO / NC) and 2 relay out.
	AVI converter with time stamp.
	Advanced CMS software with People Counting Application and Security Fence Alert.
	The CMS can control up to 64 cameras on a single screen and 16 PTZ cameras.
	Supports E-Map function for DVR group management.
TA-765DR
Car Black Boxes
Features :
Display            : 2.4" LCD Built-in
Video Resolution   : 640x480
Image Sensor       : High Sensitivity CMOS Sensor
Recording Frame    : 30 FPS
Compression Mode   : AVI (MJPEG)   (FAT32)
Storage Media      : Support SDHC Memory Card Class 6 or above, Max. 32GB
Audio Input        : Built-in 1 Channel Microphone
Shutter Automatic  : Electronic Shutter
White Balance      : Auto
Power Supply       : DC 5V Input, Dedicated Car Charger
Internal Battery   : 3.7V / 450mAh Lithium battery
Stamp              : ID, Date, Time
Dimension          : W65xH65xD42(max.)mm
Weight             : 90g
View Angle         : Standard: 72° ( 30°~150° Optional)
Operating Temp.    : -20°C ~ +70°C
Player             : GOM, KM, VLC, Media Player
Accessories        : Wide angle Car Suction Cup Mount, Dedicated Car Charger, USB Cable, User Guide
TK-987
Vehicle Warning Lights

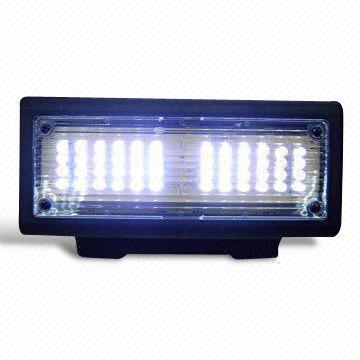

TK -97L
TK -97L

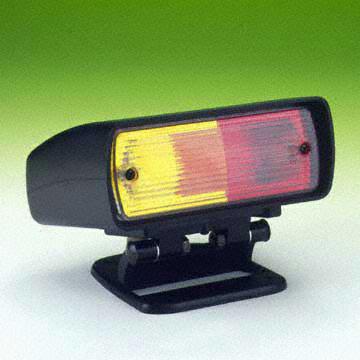

TK-96
TK-96

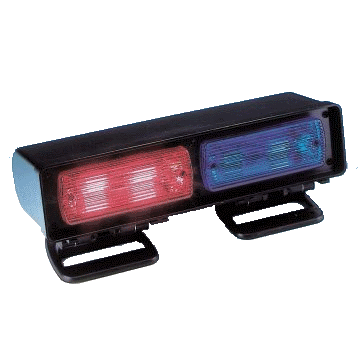

TK-900
TK-900

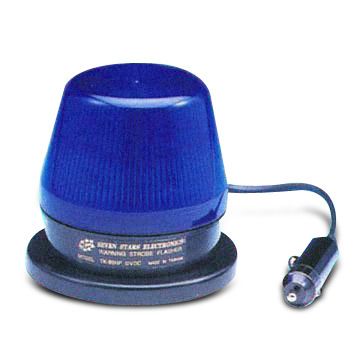

TK-M3
TK-M3
TK-88HP
TK-88HP

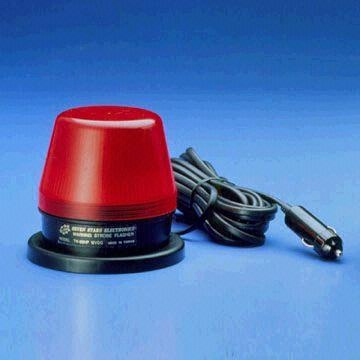

TK-M2
TK-M2

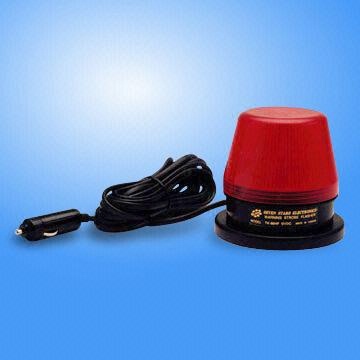

TK-88
TK-88

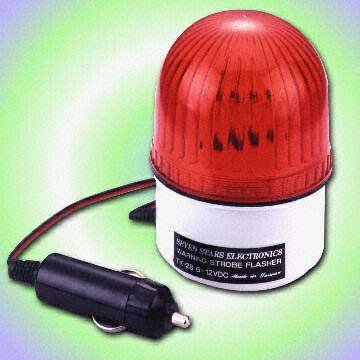

TK-28
TK-28

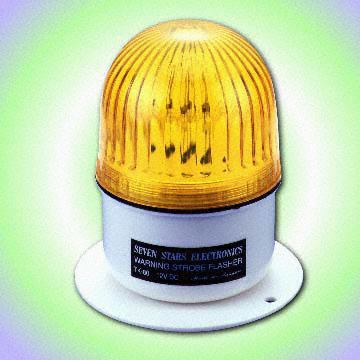

TK-60
TK-60

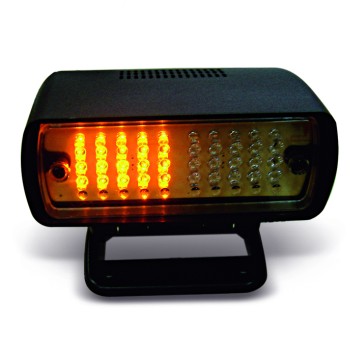

TK-96L
TK-96L

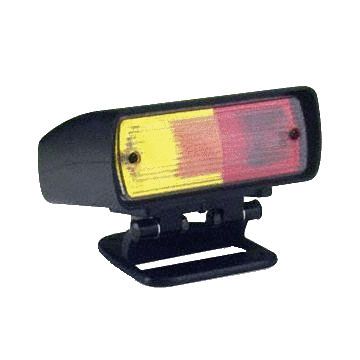

TK-96A20
TK-96A20

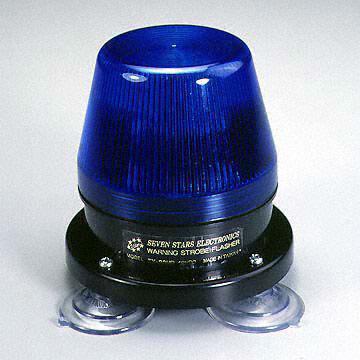

TK-87
TK-87
Security Warning Lights
Medium Sized
Key Specifications/Special Features:

    * Output: 8W
    * Rated voltage: 12V DC
    * Current drain: 220mA
    * Flash rate: 140 flashes/minute
    * Material: ABS resin base and polycarbonate/acrylic lens
    * Base colors: black and white
    * Lens colors: clear, amber, blue, and red
    * Dimensions: 70 x 102mm
    * Weight: 80g

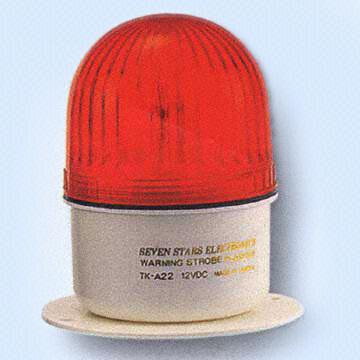

TK-A22
Key Specifications/Special Features:

    * Great as safety device
    * Precision manufacturing
    * Rated voltage: 12 to 48V DC
    * Output: 15W
    * Current drain: 420 to 130mA
    * Flash rate: 54 to 84 flashes/min
    * Material: impact ABS resin base/acrylic lens
    * Base color: black, white
    * Lens color: clear, amber, blue, red
    * Dimension: 100 x 92mm

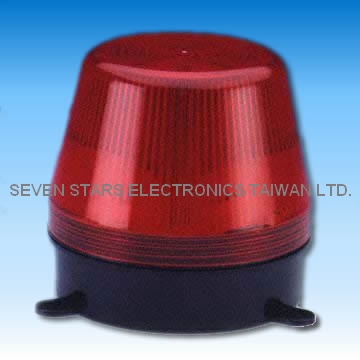

TK-PM3
Key Specifications/Special Features:

    * Precision manufacturing
    * Ideal for use as safety device
    * Rated voltage: 12 to 72V DC
    * Output: 12W
    * Current drain: 320 to 50mA
    * Flash rate: 66 to 108 flashes/min
    * Material: impact ABS resin base/acrylic lens
    * Base color: black, white
    * Lens color: clear, amber, blue, red
    * Dimension: 100 x 92mm
TK-PM2
Key Specifications/Special Features:

    * Output: 10W
    * Rated voltage: 12V DC
    * Flash rate: 96 flashes/minute
    * Material: ABS resin base, polycarbonate/acrylic lens
    * Base colors: white, black
    * Lens colors: clear, amber, blue, red
    * Dimensions: 100 x 82mm
    * Weight: 200g
TK-86Y
Key Specifications/Special Features:

    * Output: 15W
    * Rated voltage: 6, 12, 24VDC
    * Current drain: 800mA
    * Flash rate: 90 flashes/minute
    * Material: ABS resin base, polycarbonate/acrylic lens
    * Base colors: white, black
    * Lens colors: clear, amber, blue, red
    * Dimensions: 100 x 82mm
    * Weight: 230g

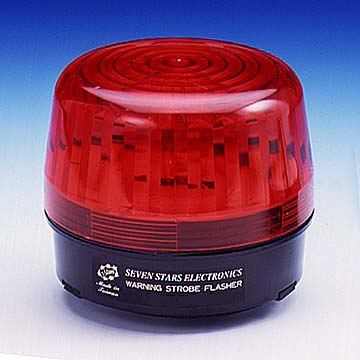

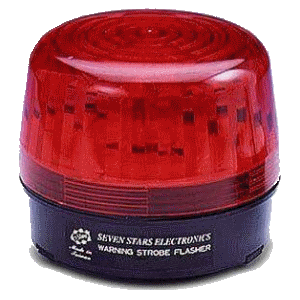

TK-86K
Key Specifications/Special Features:

    * Output: 15W
    * Rated voltage: 12V DC, also available in 24V DC and 220V AC
    * Current drain: 800mA
    * Flash rate: 75 flashes/minute
    * Material: ABS resin base and polycarbonate/acrylic lens
    * Base colors: white and black
    * Lens colors: clear, amber, blue, and red
    * Dimensions: 100 x 92mm
    * Weight: 350g

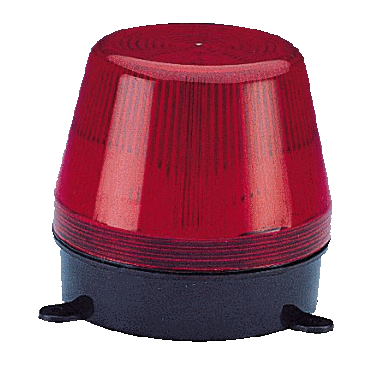

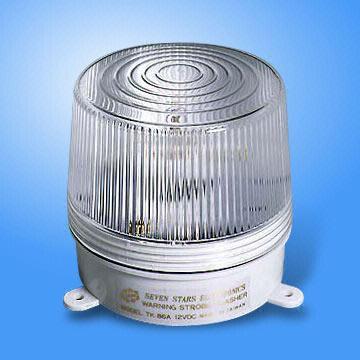

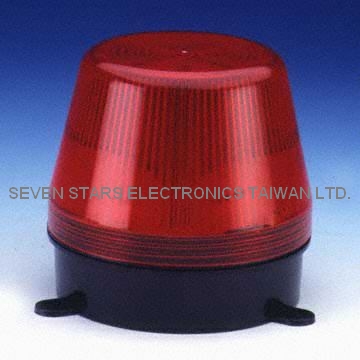

TK-86HP
Key Specifications/Special Features:

    * 250mA, 12W
    * Rated voltage: 6 to 12V DC
    * 96 flashes/minute
    * Dimensions: 100 x 88mm
    * Weight: 200g

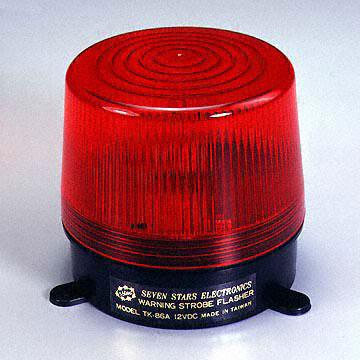

TK-86G
Key Specifications/Special Features:

    * Output: 10W
    * Rated voltage: 6 to 12V DC, available in 24V DC
    * Current drain: 220mA
    * Flash rate: 75 flashes/minute
    * Material: ABS resin base and polycarbonate/acrylic lens
    * Base colors: white and black
    * Lens colors: clear, amber, blue, and red
    * Dimensions: 100 x 88mm
    * Weight: 200g
TK-86A
Miniature
Key Specifications/Special Features:

    * Output: 3W
    * Rated voltage: 12V DC
    * Current drain: 180mA
    * Flash rate: 90 flashes/minute
    * Material: ABS resin base, polycarbonate/acrylic lens
    * Base color: black
    * Lens colors: clear, amber, blue, red
    * Dimensions: 77 (diameter) x 50mm
    * Weight: 80g

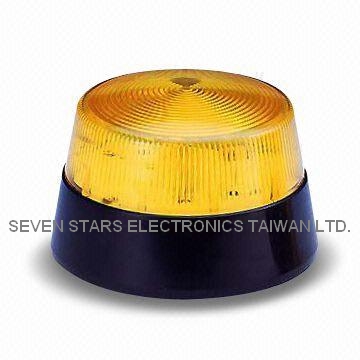

TK-30
Key Specifications/Special Features:

    * 180mA, 3W
    * Rated Voltage: 6VDC to 12VDC
    * 90 flashes/minute
    * Dimensions (diameter x H): 70 x 43mm
    * Weight: 80g
F-34K
Key Specifications/Special Features:

    * Output: 3W
    * Rated voltage: 6 to 12V, 24VDC available
    * Current drain: 180mA
    * Flash rate: 90 flashes/minute
    * Material: ABS resin base, polycarbonate/acrylic lens
    * Base color: black
    * Lens colors: clear, amber, blue, red
    * Dimensions: 70 x 43mm
    * Weight: 80g

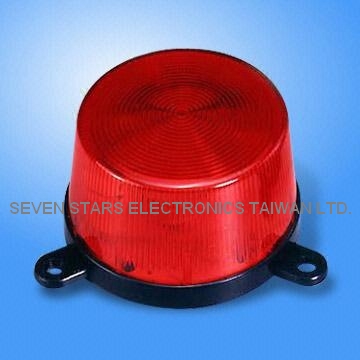

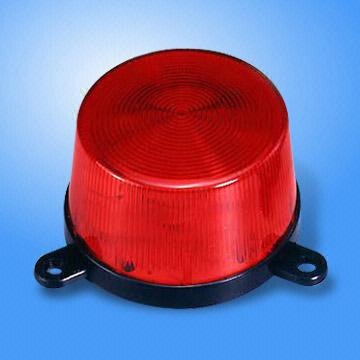

TK-34K
Key Specifications/Special Features:

    * Output: 3W
    * Rated voltage: 6 to 12V DC, 24V DC available
    * Current drain: 180mA
    * Flash rate: 90 flashes/minute
    * Material: ABS resin base, polycarbonate/acrylic lens
    * Base color: black
    * Lens colors: clear, amber, blue, red
    * Dimensions: 70 x 43mm
    * Weight: 80g

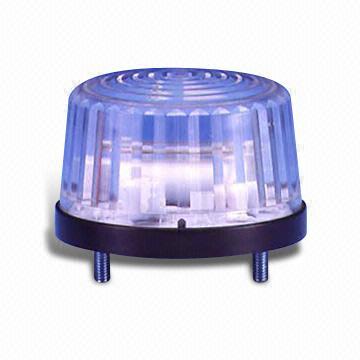

F-34
Key Specifications/Special Features:

    * Output: 3W
    * Rated voltage: DC 6V to 12V, 24V available
    * Current drain: 180mA
    * Flash rate: 90 flashes/minute
    * Material: ABS resin base, polycarbonate/acrylic lens
    * Base color: black
    * Lens colors: clear, amber, blue, red
    * Dimensions (diameter x H): 70 x 31mm
    * Weight: 80g

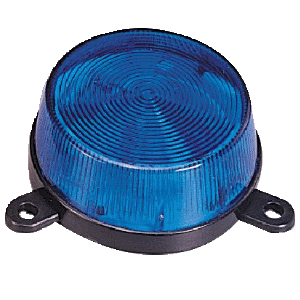

TK-31K
Key Specifications/Special Features:

    * Output: 3W
    * Rated voltage: 6V to 12V DC, 24V available
    * Current drain: 180mA
    * Flash rate: 90 flashes/minute
    * Material: ABS resin base, polycarbonate/acrylic lens
    * Base color: black
    * Lens colors: clear, amber, blue, red
    * Dimensions: 70 x 31mm
    * Weight: 80g
TK-31
Key Specifications/Special Features:

    * Output: 3W
    * Rated voltage: 6 to 12V, 24VDC available
    * Current drain: 180mA
    * Flash rate: 90 flashes/minute
    * Material: ABS resin base, polycarbonate/acrylic lens
    * Base color: black
    * Lens colors: clear, amber, blue, red
    * Dimensions: 70 x 43mm
    * Weight: 80g

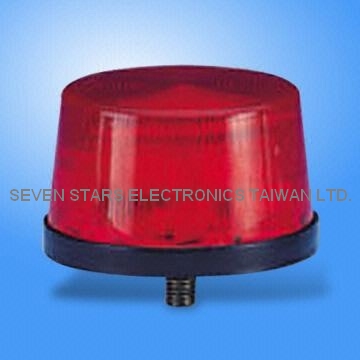

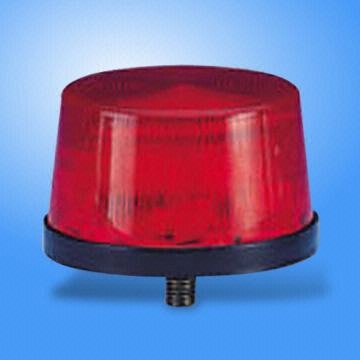

TK-34
Key Specifications/Special Features:

    * Output: 3W
    * Rated voltage: 12V DC
    * Current drain: 190mA
    * Flash rate: 140 flashes/min
    * Material: ABS resin base, polycarbonate/acrylic lens
    * Base color: black
    * Lens colors: clear, amber, blue, red
    * Dimensions: 70mm (dia.) x 52mm
    * Weight: 80g

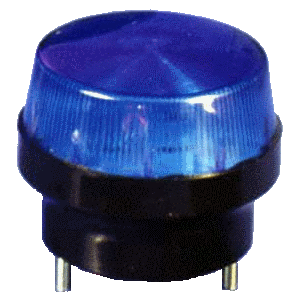

TK-32
Special Purposes

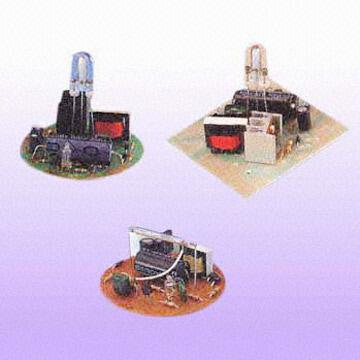

Key Specifications/Special Features:

    * PF-86HP: left
          o Output: 15W
          o Current: 800mA
          o Rated voltage: 12V DC
          o Dimension: 76mm (Dia.)
    * PF-90: right
          o Output: 15W
          o Current: 800mA
          o Rated voltage: 12V DC
          o Dimension: 89 x 75mm
    * PF-34: bottom
          o Output: 3W
          o Current: 190mA
          o Rated voltage: 12V DC
          o Dimension: 64mm (Dia.)
PF-86HP/PF-9
Key Specifications/Special Features:

    * Output: 15W
    * Rated voltage: 6V, 12V, 24V DC
    * Current drain: 800mA
    * Flash rate: 90 flashes/minute
    * Dimensions: 89 x 75mm

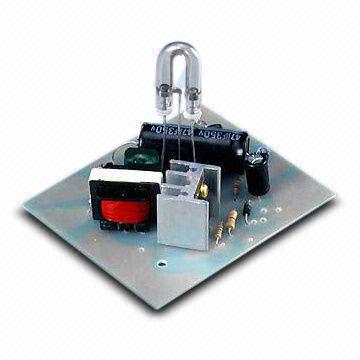

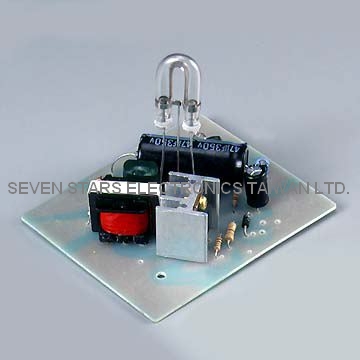

PF-90

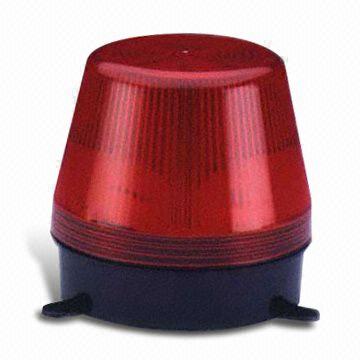

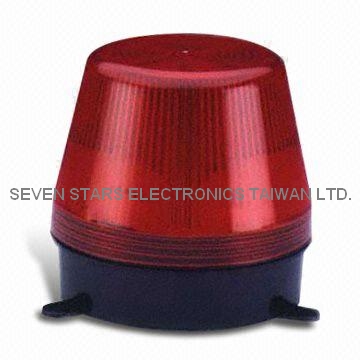

Key Specifications/Special Features:

    * Precision manufacturing
    * Ideal for use as safety device
    * Rated voltage: 12 to 72V DC
    * Output: 12W
    * Current drain: 320 to 50mA
    * Flash rate: 66 to 108 flashes/min
    * Material: impact ABS resin base/acrylic lens
    * Base color: black, white
    * Lens color: clear, amber, blue, red
    * Dimension: 100 x 92mm
TK-PM2
Key Specifications/Special Features:

    * Great as safety device
    * Precision manufacturing
    * Rated voltage: 12 to 48V DC
    * Output: 15W
    * Current drain: 420 to 130mA
    * Flash rate: 54 to 84 flashes/min
    * Material: impact ABS resin base/acrylic lens
    * Base color: black, white
    * Lens color: clear, amber, blue, red
    * Dimension: 100 x 92mm
TK-PM3
Inquire List more
0 items
Bestsellers
01.TK-31TK-31
02.TK-900TK-900
03.TK-30TK-30
04.TK-96A20TK-96A20
05.TK-96TK-96
06.TK-96LTK-96L
07.TK -97LTK -97L
08.TK-438TK-438
09.TK-88HPTK-88HP
10.TK-86YTK-86Y
Information
About Us
Contact Us
Copyright © 2013 Seven Stars Electronics Taiwan Ltd.
